Ferrotec GeneFast Automation Platform™
Enhance nucleic acid purification workflows
For Research Use Only (RUO)
Accelerate DNA/RNA Purification with the GeneFast Automation Platform™
When sample integrity is non-negotiable, you need instrumentation built to deliver. Precision-engineered magnetic rod technology and dynamic amplitude control eliminate residue and maximize sample recovery, while enhanced thermal uniformity ensures consistent performance across every lysis and elution step. Integrated UV sterilization and disposable tip combs address contamination risk at every level, and a cockpit-style interface with extensive protocol storage keeps your validated methods ready to deploy — run after run.
Superior Recovery and Minimal Loss
Newly designed magnetized rods and dynamic amplitude control prevent bead adhesion to tube walls, ensuring zero residue and compatibility with all magnetic bead formats.
Contamination Control and User Safety
Integrated UV sterilization and disposable eight-strip tip combs effectively eliminate aerosol cross-contamination between runs, maintaining the highest standards for experimental integrity.
Validated Standardization
Extensive on-board storage for custom protocols ensures consistent performance and high reproducibility across every experiment.
Precision Thermal Control
An enhanced, encapsulated deep-well heating block provides superior temperature uniformity, maximizing the efficiency of critical lysis and elution steps.
Intuitive Interface
A modern “cockpit-style” UI provides real-time visibility of all run parameters and protocols, streamlining operation for multi-user environments.

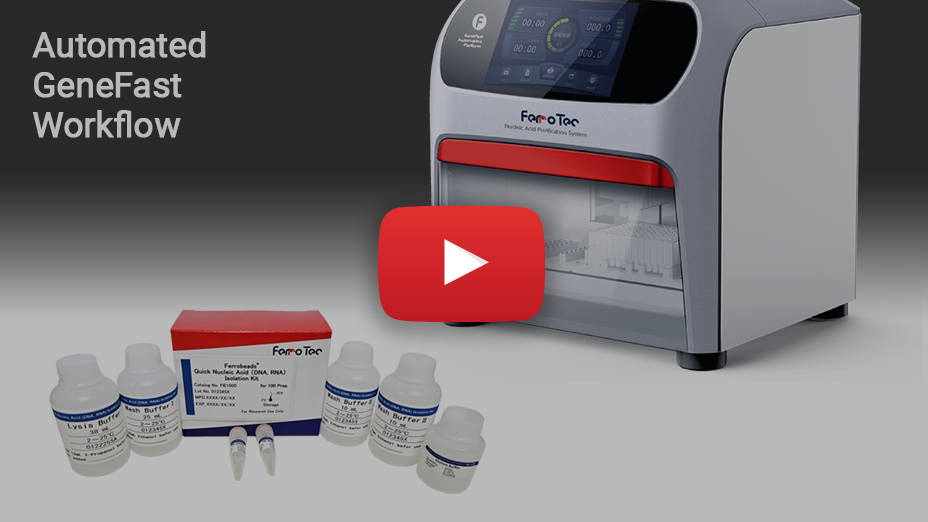

How Ferrotec’s GeneFast Automation Platform™ Works
The built-in heating function of the GeneFast Automation Platform accelerates sample lysis and enhances greater nucleic acid release.
This also improves the nucleic acid yield ratio and boosts overall extraction efficiency.
Step 1: Select an existing protocol or create a new protocol.
Step 2: Prepare reagents and plates.
Step 3: Load samples.
Step 4: Run the program.
Step 5: Remove the purified samples.
The process then loops to allow another batch of samples to be purified.
GeneFast Automation Platform™ Nucleic Acid Purification System
Let’s Talk About Your Purification Needs
Want to streamline your nucleic acid workflows? Ferrotec’s GeneFast Automation Platform™ supports cleaner, higher-quality sample purification with improved yield and throughput. Contact our team for additional product information, pricing, and purchase options.
Ferrotec GeneFast Automation Platform Product Specifications
Model:
NPA-32P and NPA-96P
Magnetic rod (fixed):
4 × 8 pcs
Sample range:
20–1,000 µl
Magnetic bead collection efficiency:
≥98%
Most suitable size of magnetic beads:
0.2–1.0 µm
Consumables;
96 deep well plates + 8 strip-tips:
Module temperature range:
Room temperature +5 °C–120 °C
Anti-contamination:
UV lamp
Reagent type:
Magnetic beads-based reagent
Power supply:
AC 100–240 V, 50–60 Hz
Overall dimensions (mm):
430 × 395 × 435 (L × W × H)
Net weight:
32.5 kg (71.65 lbs.)

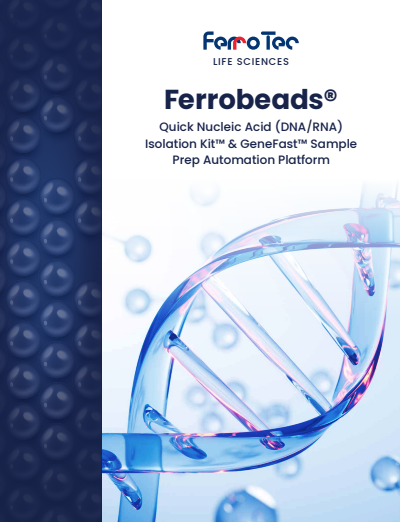

Download the Ferrotec Life Science Brochure | Download PDF

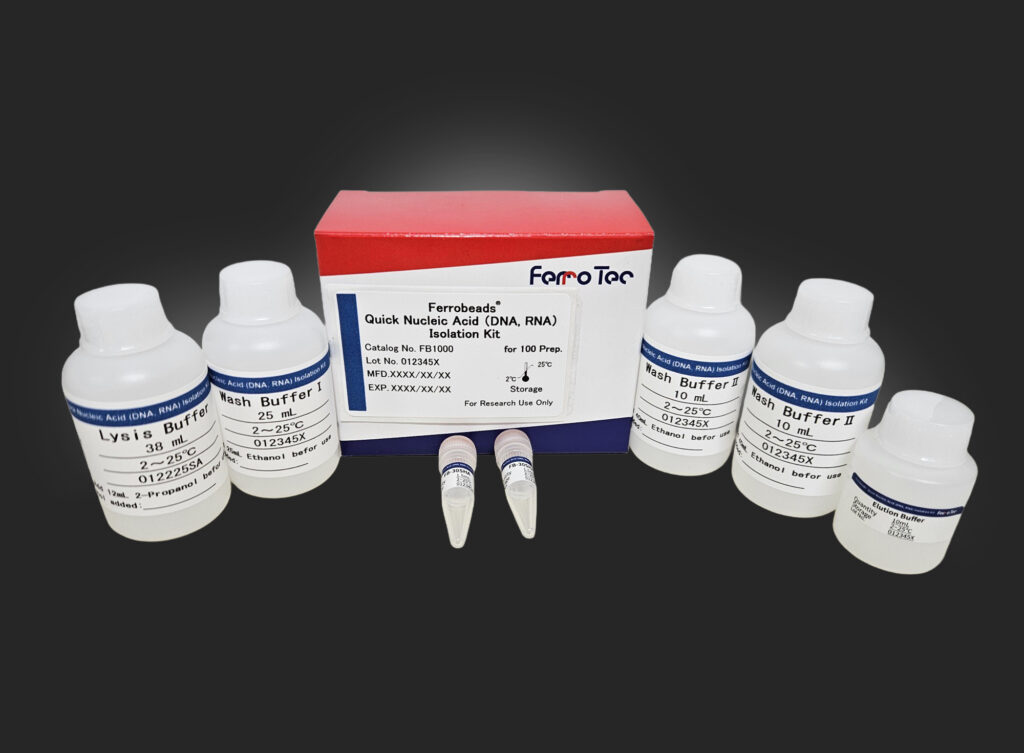

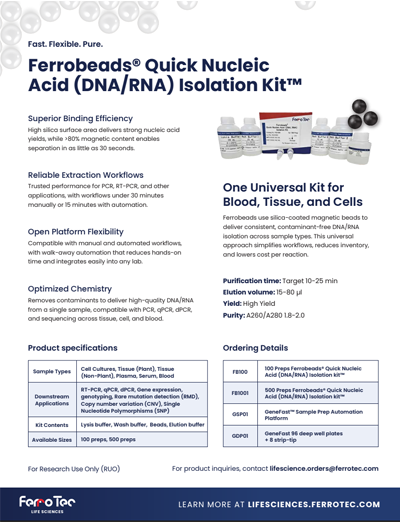

Learn more about Ferrotec Ferrobeads® DNA/RNA Isolation Kits
These kits deliver efficient nucleic acid extraction optimized for diverse applications and are compatible with both manual and automated workflows.
Ready to Optimize Your Nucleic Acid Workflows?
Whether you need versatile DNA/RNA purification kits or the advanced automation of Ferrotec’s GeneFast Automation Platform, we can help you select the best solutions for your lab. Contact us today to discuss your specific applications.
